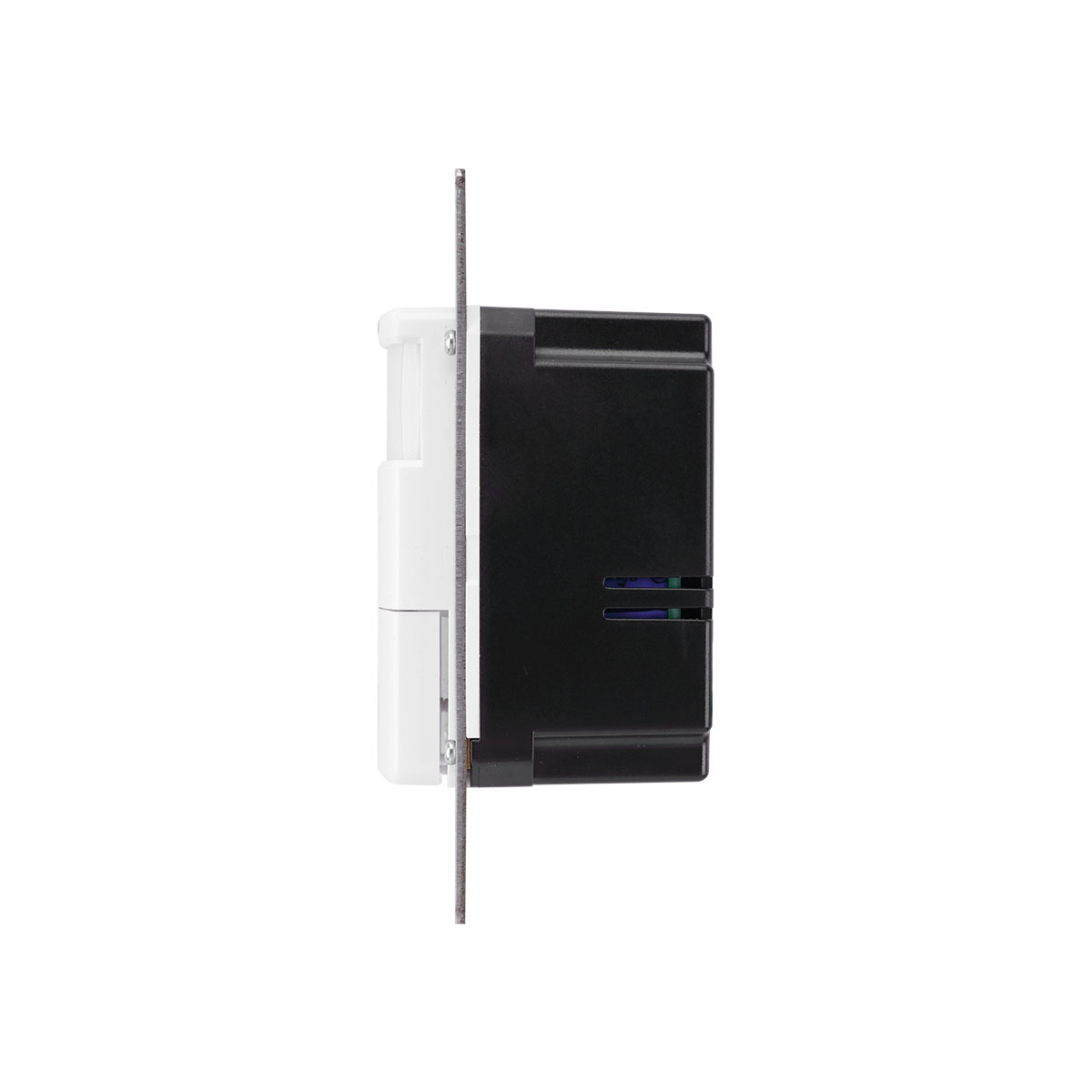

Line Voltage Occ/Vacancy Sensor BT Wall Switch
Features & Benefits
The passive infrared sensors work by detecting the difference betweend heat emitted from the human body in motion and the background space. The sensor switch can turn a load on and hold it as long as the sensor detects occupancy.After no motion is detected for the set time delay, load turned off automatically. The sensor switch has one relay (equal to single pole switch), also includes Ambient Light Level Sensor.
- 120-277VAC
- Ideal retrofit of existing wall controls (neutral is required)
- Occupancy and vacancy control of Keilton+autani devices via Bluetooth
- Integrated relay, PIR sensor, and photo sensor with Hold-Off functionality
Specifications
Part Number
IWS102.A0
aaa
aaa
Component Type
Wall Station
bbb
bbb
Technology
Bluetooth v5.0
Radio Frequency
2.4G Hz
Transmission Range
100ft
Input Voltage
120-277V
Aux Voltage
N/A
Control Output
Relay
Dimmability
N/A
Color Offering
White
Mounting Height
N/A
Sensor Type
PIR
Warranty
5 years limited warranty
Certification
FCC, CE compliant, cULus Listed, DLC listed, RoHs, UL1376 Gold
