Line Voltage 6A BT Fixture Controller
Features & Benefits

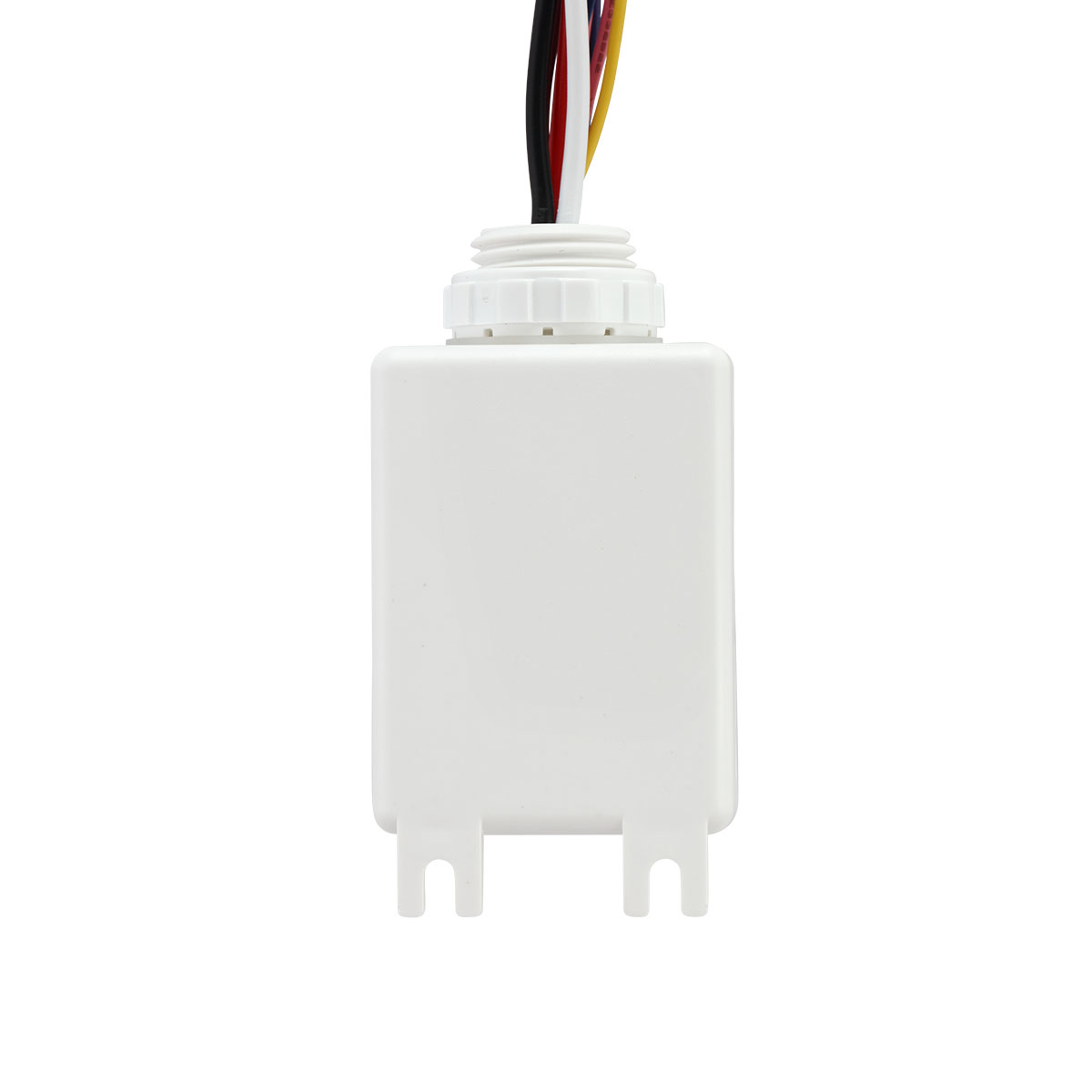

PPA102S Bluetooth Fixture Controller is network based device of Keilton lighting system, enables to manage and operate the luminaires through smartphone app. It provides 0-10V Single/Dual output and 10A relay control for luminaires. It could be also equipped Keilton Eco-Sensor family product by plugging the sensor wire connector and activating the sensor ready function.
- 120-277VAC Input
- Integrated 6A relay
- Offers 12V, 200mA output power to sensors
- Attaches with standard 1/2″ knockout
- Provides 0-10VDC dual channel output
Applications
- Retrofit of one or more commercial luminaires for Bluetooth control
- Low voltage power to Eco-Sensors
Specifications
Part Number
PPA102S.C2
aaa
aaa
Component Type
Controller
bbb
bbb
Technology
Bluetooth v5.0
Radio Frequency
2.4G Hz
Transmission Range
200ft
Input Voltage
120-277V, 120V
Aux Voltage
12V
Control Output
Dual 0-10V, Relay
Dimmability
0-10V
Color Offering
White
Mounting Height
N/A
Sensor Type
N/A
Warranty
5 year limited warranty
Certification
FCC, CE compliant, cULus Listed, DLC listed, Plenum Rated, RoHs, UL1376 Gold
